Q/FCJX 1003-2020 "Fresh cut flower bouquet sorting machine with flowing water"
Fresh cut flowers are sorted and tied together,completing the processes of root cutting, leaf combing, stabbing and tying in one go,
Adopting Dutch Cyklop elastic rope bundling technology,the efficiency reaches 2000 bundles/smal
Suitable for bundling and organizing various fresh cut flowers with a length of 450mm~1500mm
Rose
Lily
Tulips
Carnation
Babysbreath
North American Holly
Chrysanthemum
Eustoma Grandiflorum
Using Dutch Cyklop elastic rope bundling technology,
bundling diameter 30-70mm
Equipped with a flexible tension cloth flower rack
Can be equipped with an extended conveyor belt for easy subsequent operation
Can be equipped with a root cutting and slag removal machine
Main configuration of flower treatment line (continued)
| Model | WL50-400 | Description | 4.0m wast conveyor belt |
| Executive standards | Q/FCJX 1003-2020 "Fresh cut flower bouquet sorting machine with flowing water" | ||
| Main technical terms | 1. The standard specification is 4 meters and non standard customization is acceptable. | ||
| 2.Use the same power supply as the host, default to three-phase 380V/50Hz power supply, three-phase four wire system. | |||
| Main Business Terms | 1. This product is an auxiliary equipment for the flower processing line, and quality assurance and after-sales service are based on the host part. | ||
| 1. The packaging and transportation methods shall be stipulated in the contract according to the situation. | |||
| Real shot of 4.0 wast conveyor belt with host | |||
| |||
| Main configuration of flower treatment line (continued) | |||
| Model | WL50-400 | Description | 4.0m wast conveyor belt |

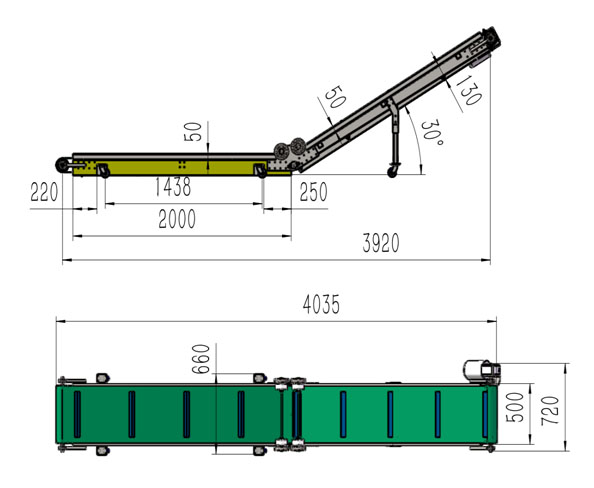

| Overall dimension diagram | |||
 | |||
Innovation model, industry pioneer, Yantai equation
Technical Support: +8615153587875（Manager Li）
1. Install and debug the equipment on-site, and provide maintenance, operation, and safety technical training to 2 operators.
2. The warranty period for the entire machine is one year, but the generator and/or engine are covered by the manufacturer's warranty terms.
3. The vulnerable parts specified in the contract and/or manual are not covered by the warranty.
