Q/FCJX 1003-2020
Suitable for large supermarket distribution centers,vegetable planting bases, and other units, using Dutch Cyklop elastic rope bundling technology, it can complete rootcutting, labeling, bundling, etc. in one go.

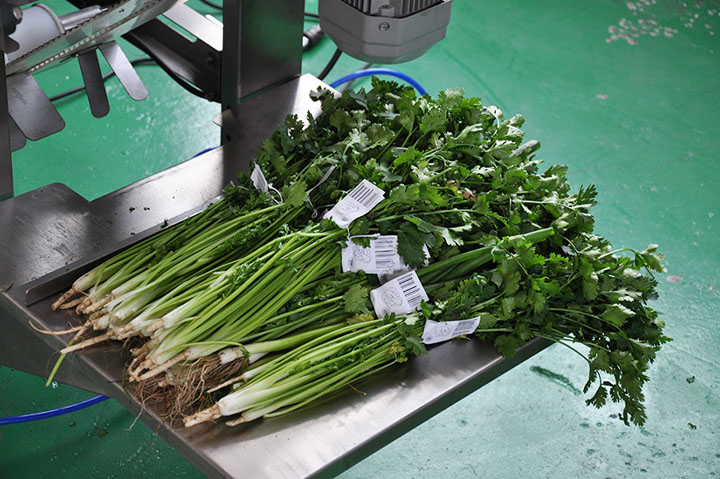

Print QR code labels, weigh and bundle, sell by bundle, high efficiency
Suitable for various vegetables, with a length range of 150mm~600mm
Made of 304 stainless steel body, durable and long-lasting

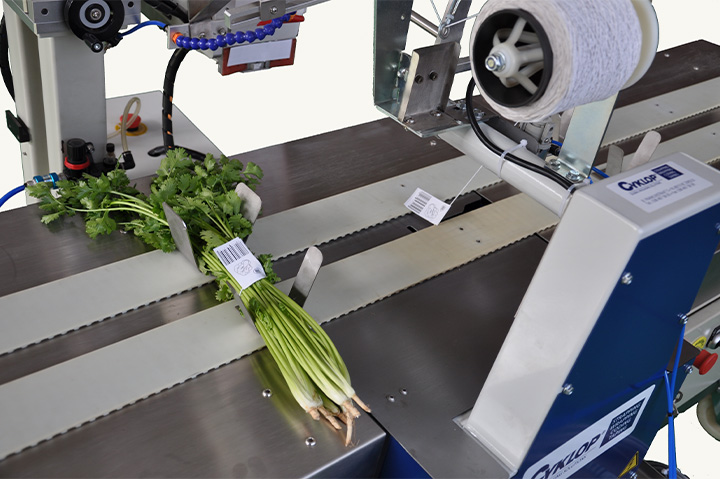

Using Dutch Cyklop elastic rope bundling technology,
bundling diameter 30-70mm

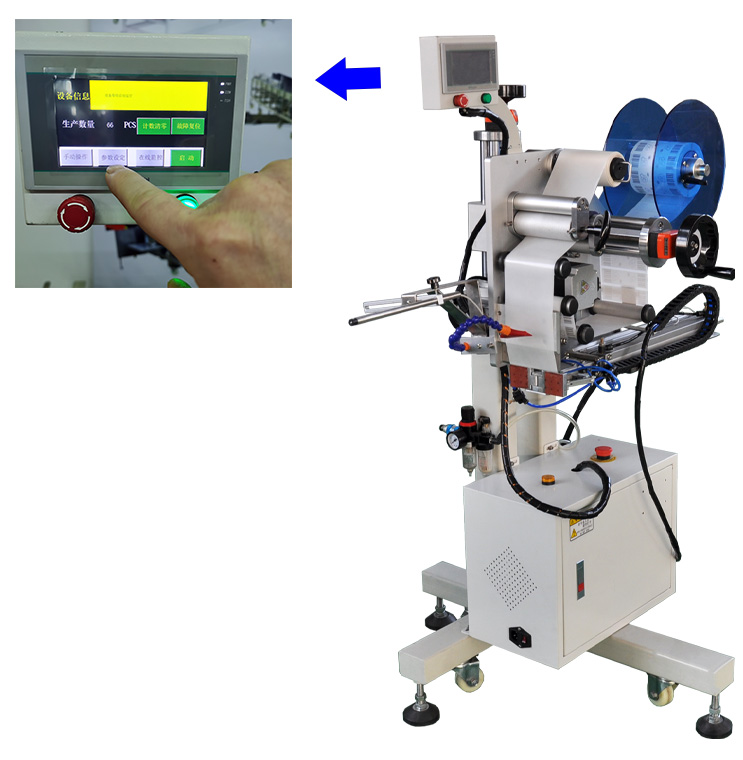

Dedicated QR code tagging machine,
reliable and efficient operation

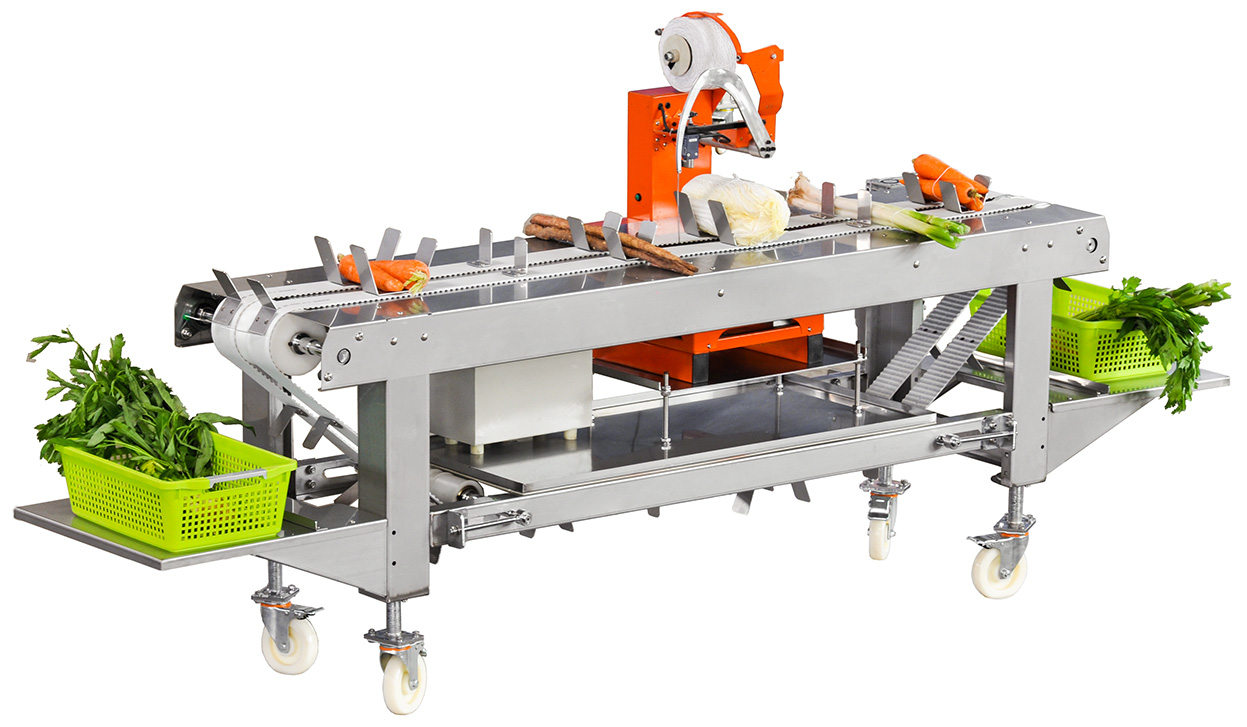

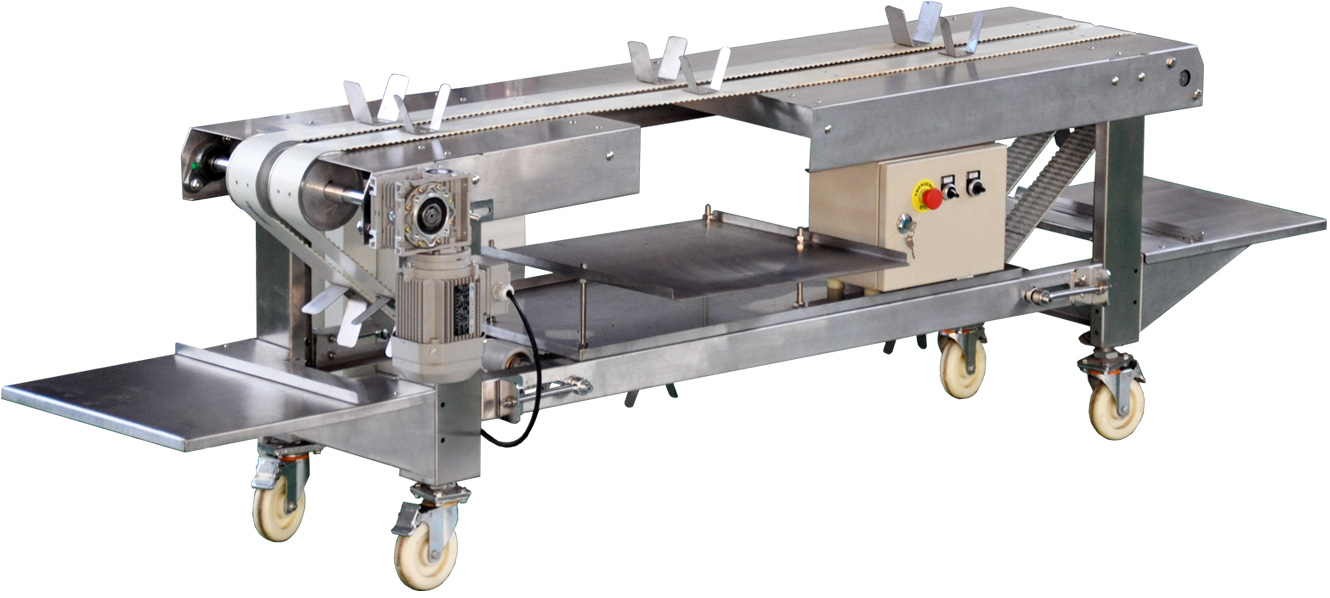

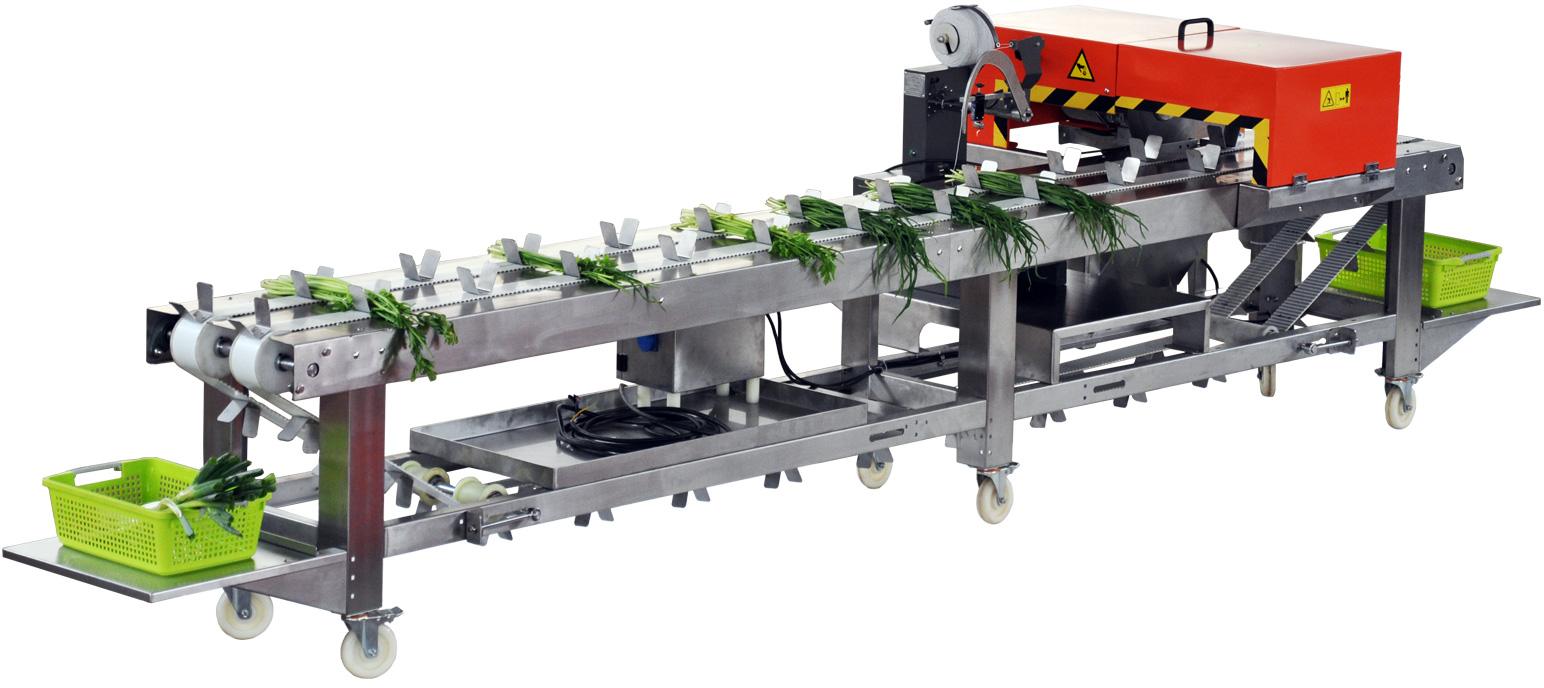

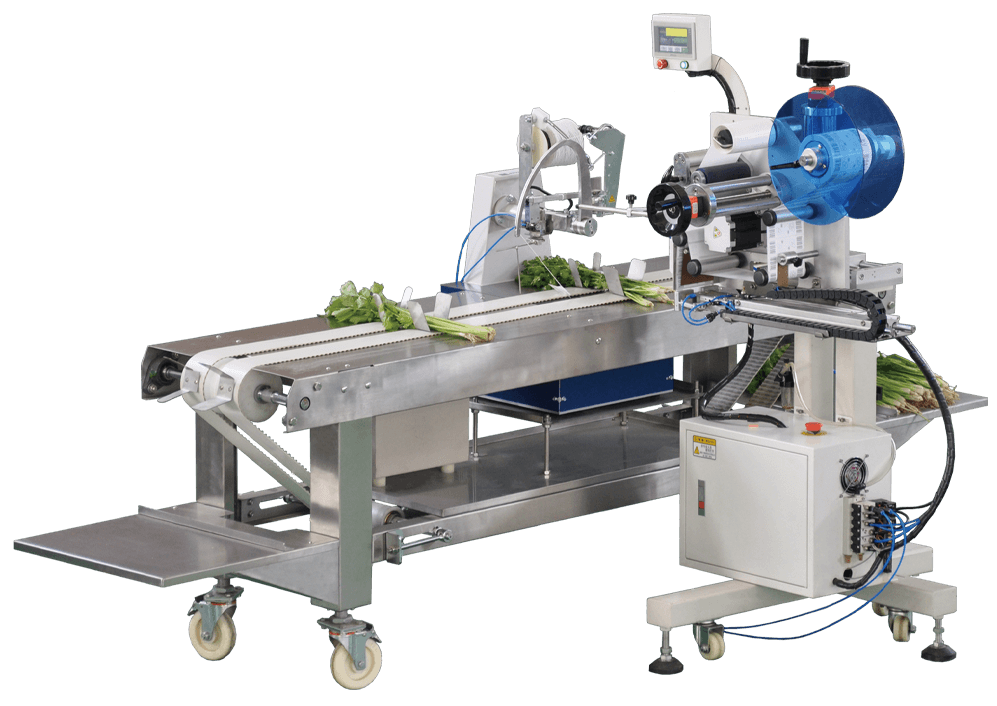

Vegetable cutting and bundling assembly line
Vegetable cutting and bundling assembly line
Main configuration
| Model | FVBL50-270L | Description | 2.7m vegetables bundling & cutting line with label |
| Executive standards | Q/FCJX 1003-2020 | ||
| Main technical terms | 1.Standard specification is 2.7 m left, accept non-standard customization. | ||
| 2.Default power is three-phase 380V/50Hz, three-phase four wire system. | |||
| Main Business Terms | 1. This product is an auxiliary equipment of the vegetable processing line, and quality assurance and after-sales service are based on the host part. | ||
| 2. The packaging and transportation methods shall be stipulated in the contract according to the situation. | |||

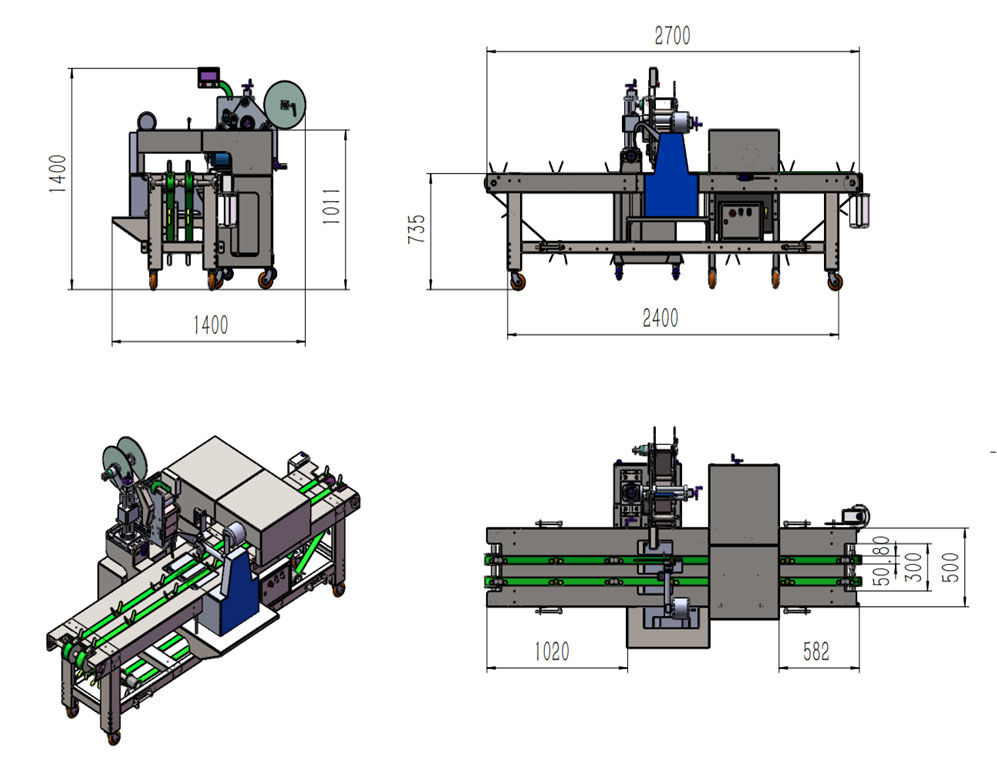

| Drawing of 2.7m vegetables bundling & cutting line with label | |||
| |||
| Main Configuration | |||
| Model | FVBCL50-270L | ||
| Overall dimension diagram | |||
 | |||
Innovation model, industry pioneer, Yantai equation
Technical Support: +8615153587875（Manager Li）
1. Install and debug the equipment on-site, and provide maintenance, operation, and safety technical training to 2 operators.
2. The warranty period for the entire machine is one year, but the generator and/or engine are covered by the manufacturer's warranty terms.
3. The vulnerable parts specified in the contract and/or manual are not covered by the warranty.
