Implement standards: Q/FCJX 1002-2019 "Vehicle-mounted internal combustion engine driven high-pressure blower"

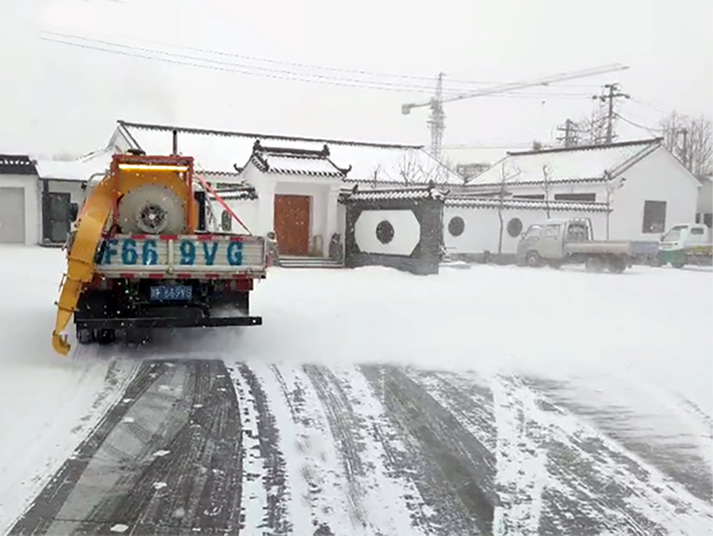

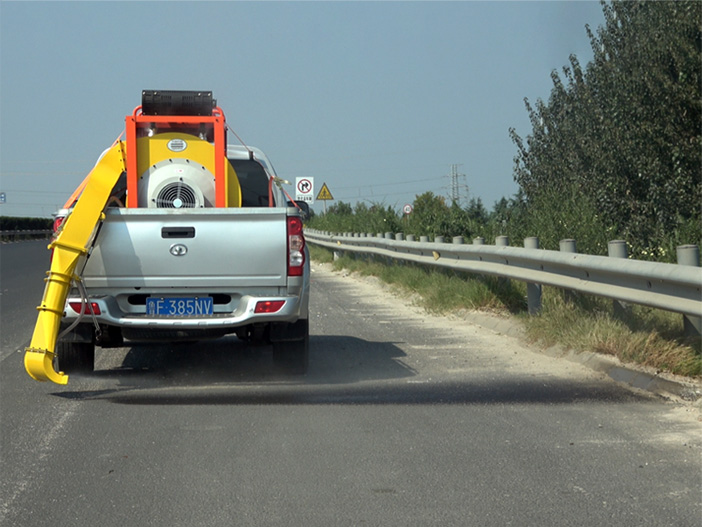

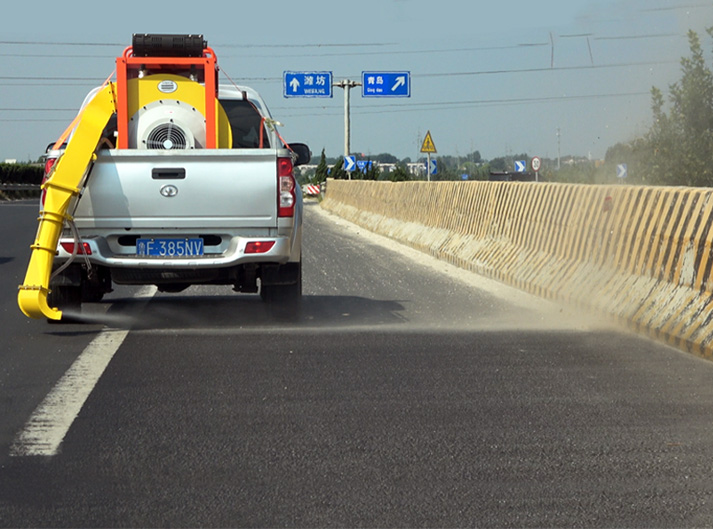

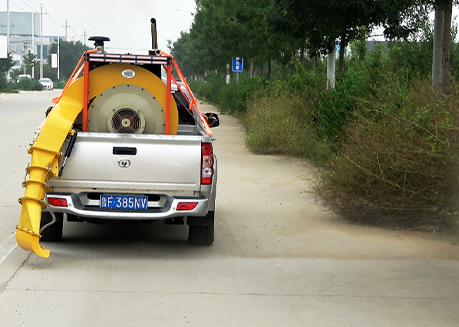

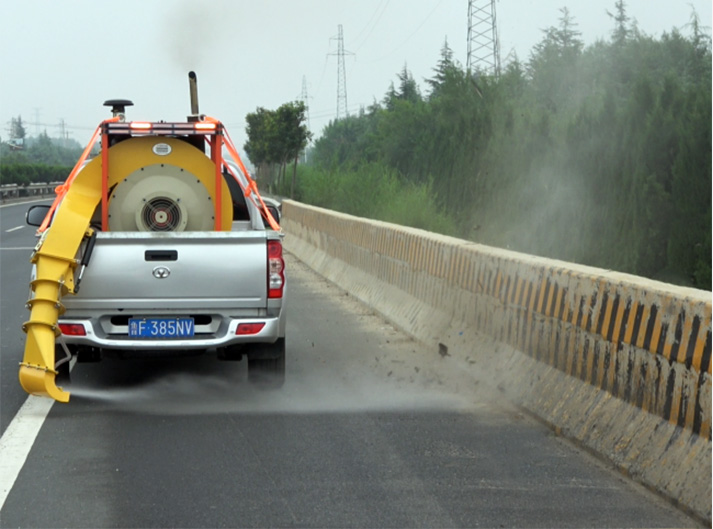

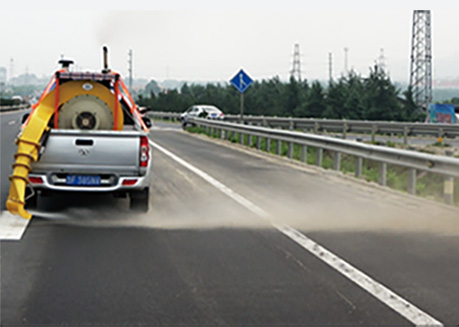

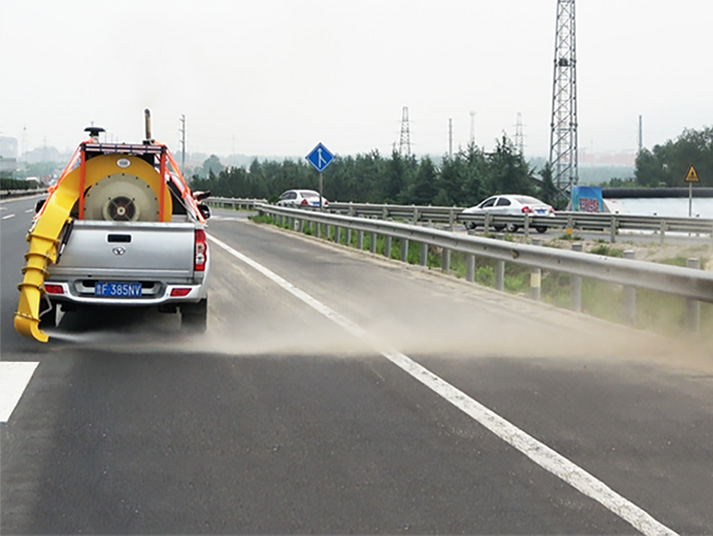

Suitable for rapid cleaning of various road surfaces, squares, and docks

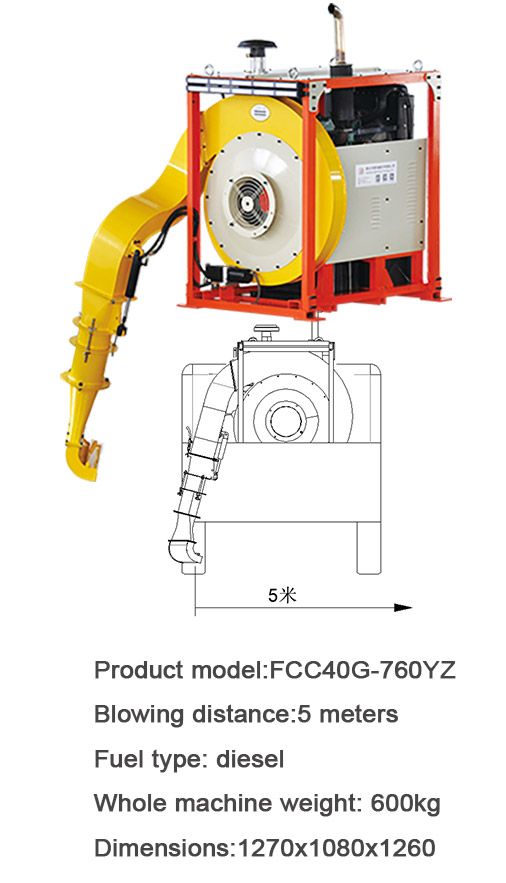

Powered by a diesel or gasoline engine, the dedicated high-pressure centrifugal fan has a compact structure, small volume, and light weight
Specially designed fan with three-dimensional streamlined air duct for strong wind power
Water mist dust suppression meets environmental protection requirements
The height and angle of the hair dryer can be adjusted to meet various working conditions

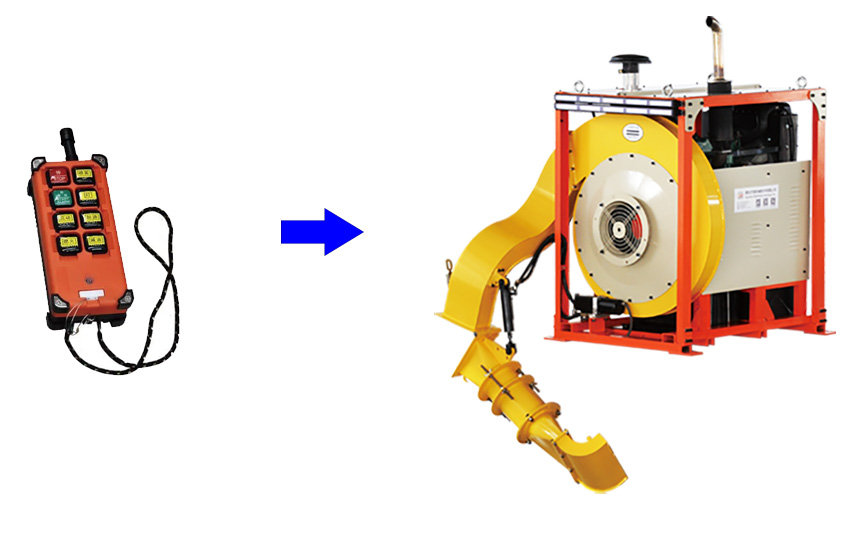

Single chip integrated control, fully remote control operation
Engine start
Engine growth rate
Engine deceleration
Engine shutdown
Warning light switch
Dust and water mist switch
Folding and retracting of air ducts
Low purchase cost, low operating expenses, and fast operation speed
Main configuration and technical parameter table
| Components | Items | Parameters | Remarks | |||||

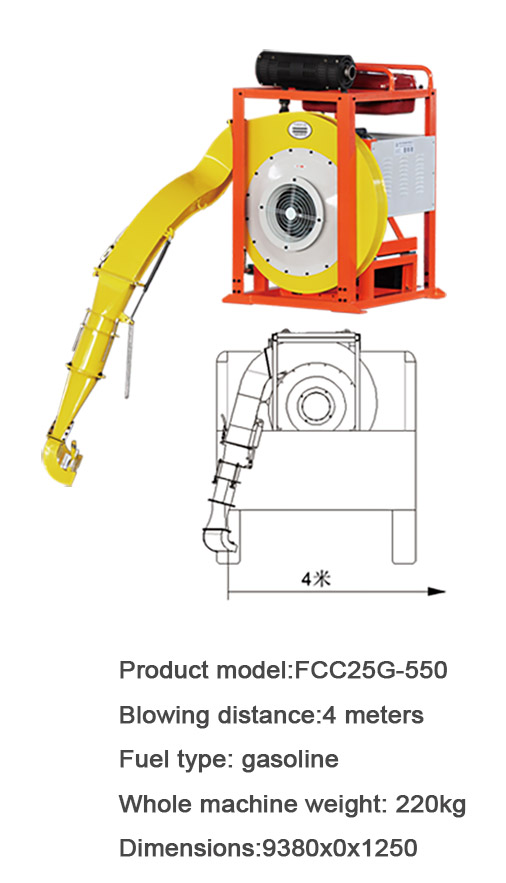

| Engine | Model | 290 air-cooled gasoline engine | ||||||
| Fuel type | Gasoline | |||||||
| Rated speed | 3200 rpm | |||||||
| Rated power | ≥25kw @ 3200rpm | |||||||
| Emission standard | ||||||||
| Fan | Noise | Low | ||||||
| Air volume | 5500 m3/h | |||||||
| Air pressure | 60000 Pa | |||||||
| Air pipe | Folding mode | Manual | ||||||
| Overall parameters | Reference fuel consumption | 7-8 L/h | ||||||
| Highway sweeping operation speed (reference value) | 30 - 60 km/h | |||||||
| Standard height of load-bearing chassis bottom plate | 800 - 1000 mm | Exceeding this value requires explanation | ||||||
| Capacity of dust reduction water tank | 0.5 - 1 m3 | According to the vehicle model | ||||||
| Outline dimensions | 930x800x1250 | |||||||
| Whole machine weight | 220kg | |||||||
Innovation model, industry pioneer, Yantai equation
Technical Support: +8615153587875（Manager Li）
1. Install and debug the equipment on-site, and provide maintenance, operation, and safety technical training to 2 operators.
2. The warranty period for the entire machine is one year, but the generator and/or engine are covered by the manufacturer's warranty terms.
3. The vulnerable parts specified in the contract and/or manual are not covered by the warranty.
